Grating for Infrastructure & Transportation Projects
Infrastructure work is unforgiving on materials. Bridge decks see cyclic loads and de-icing salts. Airport aprons combine heavy wheel loads with fuel and glycol exposure. Transit stations demand slip resistance, drainage, and decades of service with minimal maintenance. Grating for these environments cannot be pulled off a shelf — it has to be engineered for the span, the load case, and the exposure conditions written into your project specification.
GoGrating supplies custom-fabricated steel grating and FRP grating for infrastructure and transportation projects worldwide, manufactured factory-direct in Anping, Hebei — China's grating and wire-mesh manufacturing hub. We work from your drawings: EPC contractors and procurement engineers send us CAD files, cut sheets, or marked-up plans, and we fabricate panels, trench covers, and stair treads to those dimensions. Because every order is made to spec, we quote per project — request a quote with your drawings to get started.
Infrastructure Applications

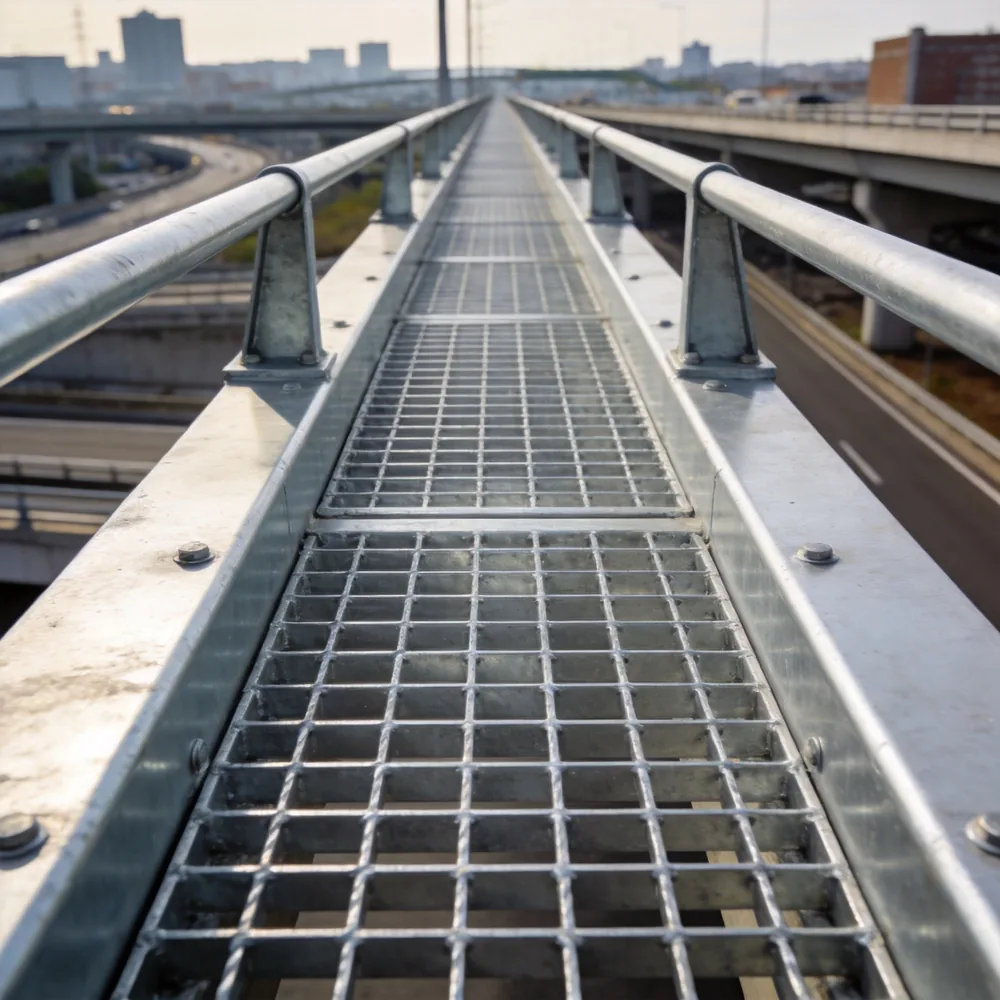

Bridge grating. Pedestrian bridge decking, inspection walkways, maintenance catwalks, and expansion-joint covers. Heavy-duty bearing bars — typically toward the upper end of the 50×5 to 100×9 mm range — handle longer spans, while serrated surfaces provide slip resistance in wet and icy conditions. Hot-dip galvanizing to ASTM A123 is the default protection against road salt and weathering; stainless 304/316 is available where chloride exposure is severe.
Airport drainage grating. Trench covers and drainage gratings for aprons, taxiway edges, terminal forecourts, and fuel-handling areas. Frames and angle surrounds are fabricated as matched sets so covers seat flush and do not rock under traffic. For fuel farms and areas where conductivity or corrosion is a concern, our FRP grating in vinyl ester resin offers chemical resistance without the maintenance burden of coated steel.
Transit and public works. Station platform edges, ventilation shaft covers for metro systems, pedestrian walkway decking, stair treads with checker-plate or abrasive nosings, and utility trench covers along roadways. Where projects route cabling or signaling under walking surfaces, removable panels with lifting holes or hinged sections can be detailed to your maintenance access requirements. See our full range of application solutions for related uses.
Recommended Products
Hot-dip galvanized steel grating is the workhorse for outdoor infrastructure. Our steel grating is welded from bearing bars spanning 20×3 mm light-duty up to 100×9 mm heavy-duty sections, in 19-space and 15-space pitch series per ANSI/NAAMM MBG 531 or metric pitches per YB/T 4001.1. Panel sizes are cut to order, with banding bars, toe plates, cutouts, and fixing clips fabricated per your drawings. Surface options include plain or serrated bars; finishes run from hot-dip galvanized (ASTM A123) to painted, untreated for site coating, or stainless 304/316.
Trench covers and drainage gratings are supplied as complete assemblies — grating panel plus embedded angle frame — sized to the channel widths and load classes in your civil drawings. For pedestrian zones, heel-proof close-mesh patterns are available. Because rated capacity depends on span, bar section, and load class together, we never publish generic load claims: tell us your span and loading, and our engineers will return load tables for your specific configuration.
Infrastructure Standards
Public infrastructure is specified against standards, and our production is built around them. Steel grating is manufactured to ANSI/NAAMM MBG 531 for North American and Middle East EPC specifications and YB/T 4001.1 for metric projects; European and Australian buyers commonly reference BS 4592-series requirements, which we fabricate to on request. Hot-dip galvanizing complies with ASTM A123 (or EN ISO 1461 where the project specifies it), and our factory operates under ISO 9001 quality management with CE marking available for European deliveries.
Every infrastructure order ships with mill certificates, galvanizing coating reports, and dimensional inspection records on request — documentation your project QA team can file directly. If your tender lists a standard not named here, send the clause with your inquiry and we will confirm compliance before quoting. Request a quote with your drawings, bill of quantities, or spec section, and we will respond with a detailed technical offer.
- Custom fabrication to project drawings — CAD/DWG files welcome
- Bearing bars 20×3 to 100×9 mm, 19-space and 15-space pitch series
- Hot-dip galvanized to ASTM A123; stainless 304/316 options
- ANSI/NAAMM MBG 531, YB/T 4001.1, ISO 9001, CE
- FRP grating line for corrosive and conductive-sensitive areas
- Factory-direct export from Anping, Hebei — China's grating hub
Frequently Asked Questions
Can you fabricate infrastructure grating to our project drawings?
Yes — custom fabrication is our standard model, not the exception. Send CAD/DWG files, cut sheets, or marked-up civil drawings with your quote request, and we fabricate panels, trench covers, frames, and stair treads to those exact dimensions, including cutouts, banding, and fixing details.
What standards does GoGrating's infrastructure grating comply with?
Steel grating is manufactured to ANSI/NAAMM MBG 531 or YB/T 4001.1, with hot-dip galvanizing per ASTM A123 (EN ISO 1461 on request). Our factory is ISO 9001 certified and CE marking is available for European projects. Mill and coating certificates ship with the order on request.
Do you provide load tables for bridge and trench grating?
Yes. Load capacity depends on bearing bar section, span, and pitch together, so we don't publish generic numbers. Provide your clear span and load class (pedestrian, wheel load, or a specified standard) and our engineers will supply load tables for your exact configuration.
What is the typical lead time for an infrastructure grating order?
Lead time depends on quantity, bar sizes, surface treatment, and fabrication complexity — galvanized custom panels generally take a few weeks from approved drawings. Submit your drawings and quantities through our quote request form and we'll confirm a firm production and shipping schedule in our offer.
